Problems with ipsec net2net psk connection

Virtual Private Networks IPsec
1

I am trying to set up a net2net ipsec connection with PSK on my vm testbed for evaluation purposes.

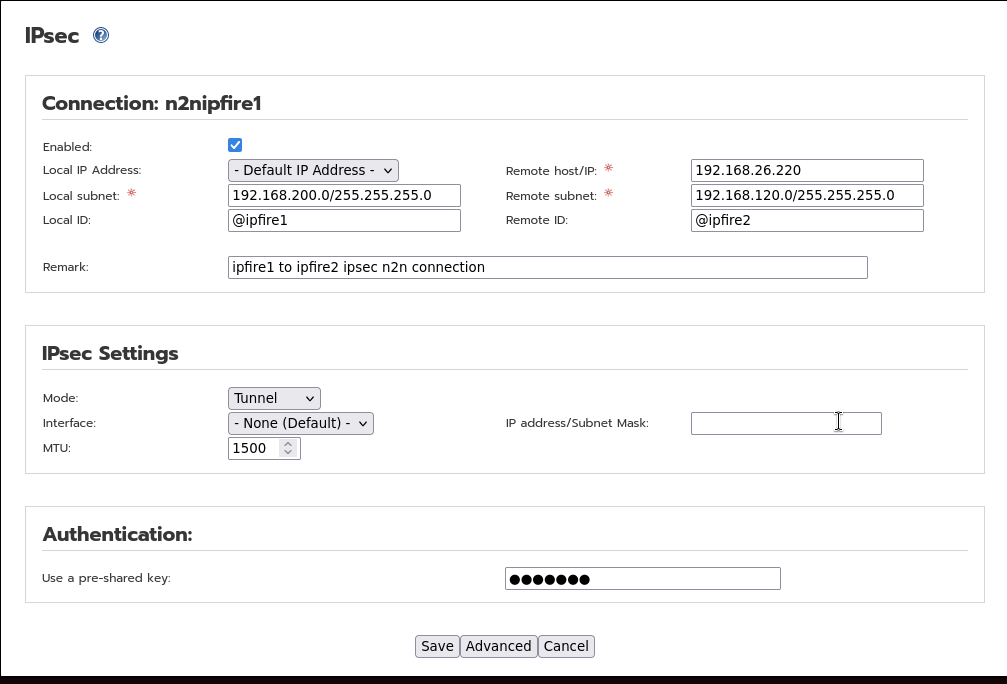

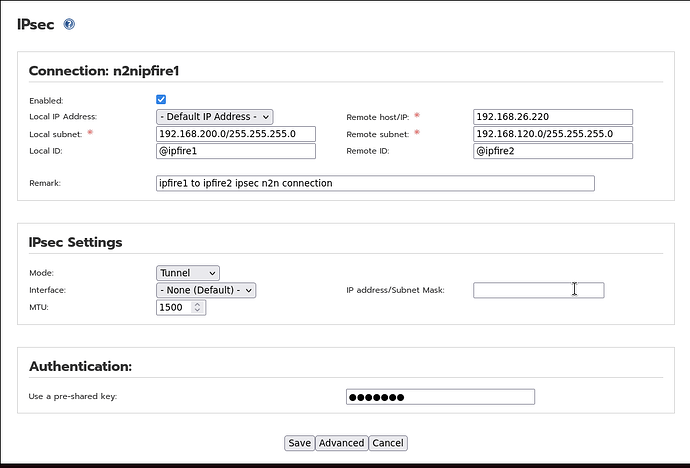

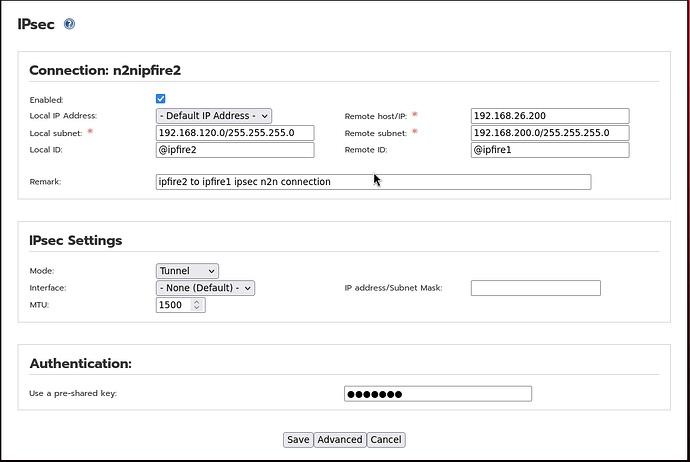

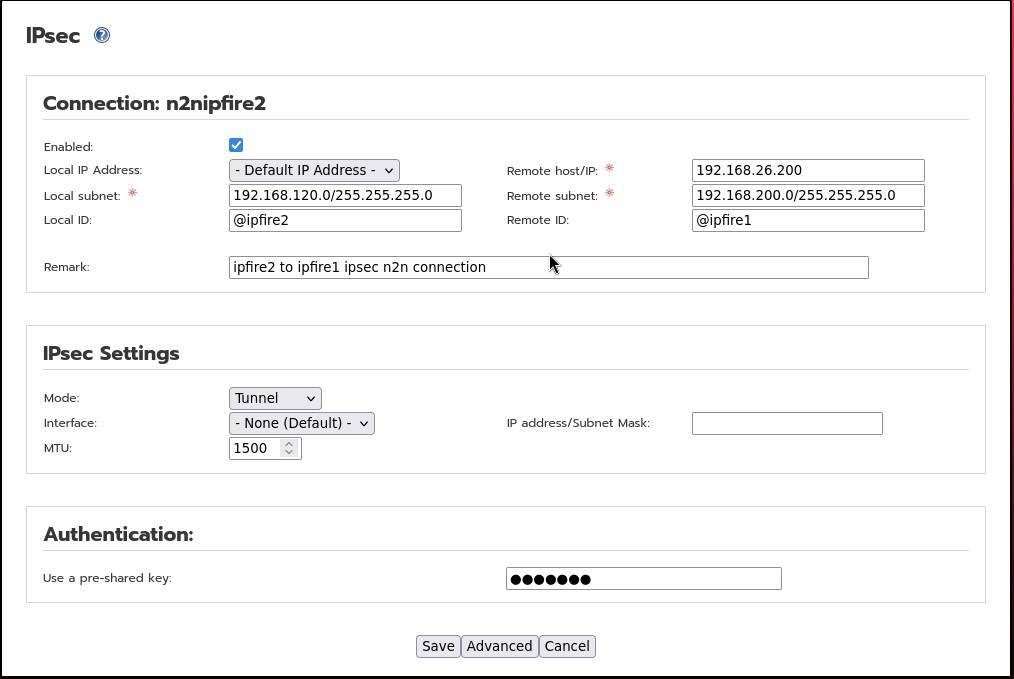

I have two vm IPFires and the ipsec n2n connection at each end is as shown in these two screenshots

Screenshot_2025-05-25_15-37-23
Screenshot_2025-05-25_15-37-231014Ă—679 37.9 KB

Screenshot_2025-05-25_15-37-47
Screenshot_2025-05-25_15-37-471007Ă—684 35.7 KB

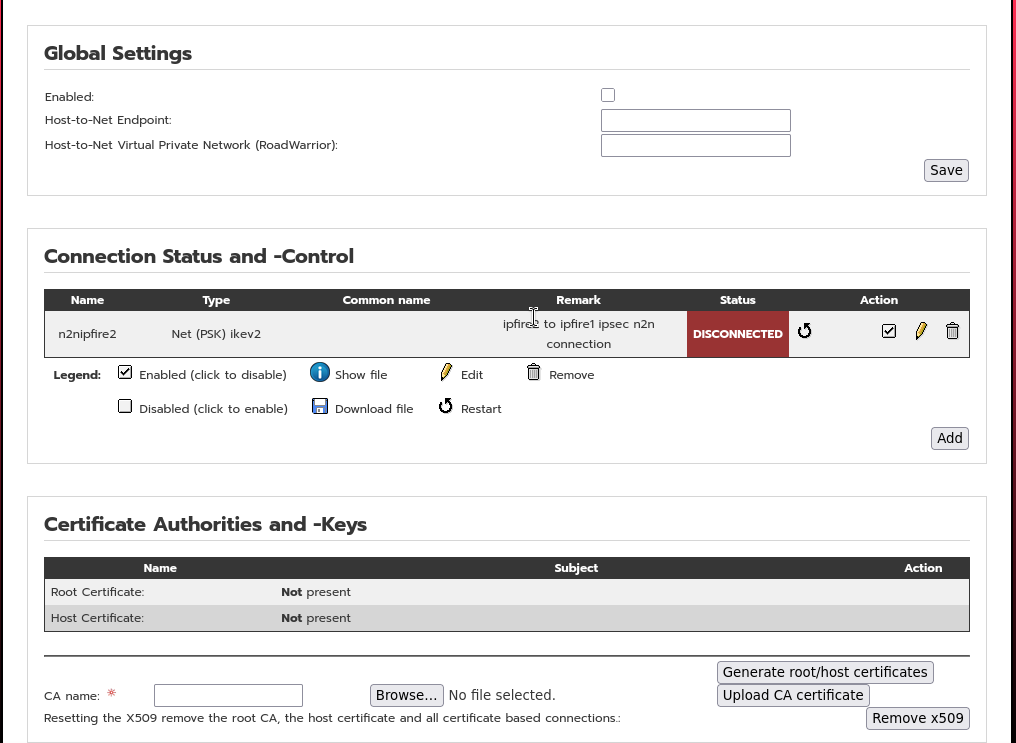

In both cases I have nothing set in the global settings section as that is said to only be needed for Net2Host and the root/host x509 cert set is only needed for certificate based connections.

Screenshot_2025-05-25_15-38-39
Screenshot_2025-05-25_15-38-391016Ă—743 50.7 KB

However, I must be doing something fundamentally wrong as the n2n connection will not connect and there are no entries in the ipsec system log at either end when I disable/enable the connection or try and reconnect.
I have also looked in the /var/log/messages file and confirmed that there is no entry in there from saving the n2n connection or from disabling/enabling the connection.

Any suggestions for what I am doing wrong will be gladly accepted and tested out.

2

:thinking: Red ipfire1 and ipfire2 interfaces are in the same subnet, respond to ping?

3

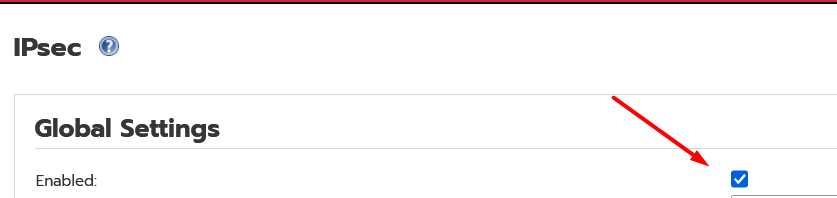

“Enabled” must be checked for connections to work :wink:

obraz
obraz837Ă—198 6.19 KB

edit

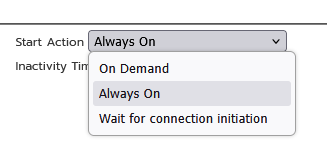

PS. don’t forget about the following settings

obraz
obraz327Ă—148 4.35 KB

1 Like
4

Thank you very much. Those two were exactly the things I needed to change.

I had left the global setting not enabled as I was doing the same as with the OpenVPN net2net connection where the OpenVPN server does not need to be enabled. It is only needed for the OpenVPN Road Warrior connection.

I have learnt that it is different for the IPSec connection.

Many thanks again.

I now have the IPSec n2n connection with a Green Connected and ping from a machine on the green of IPFire1 to another machine on the green of IPFire2 works.
:+1: :+1:

1 Like
5

Never use anything else but “On Demand” in a regular setup. If one peer is behind CGNAT, you can use “Wait for connection initiation”.

2 Likes
