OpenVPN routing to Blue instead of Green

Hello there,
since I’ve set up the blue interface, I realized that the OpenVPN Clients (Roadwarrior) which got new certificates, now gonna be routed to the blue interface network instead of the green. So I’ve lost the access to green completely via VPN. How to change the routing back to green or how to remove the route to blue?
Many Thanks in advance :folded_hands:

Edit: Strange is that OpenVPN Clients with certificates issued before the Blue interface setup, not having this problem, they still get the push route to green. It’s only with new client certificates.
And if I’m right only the OpenVPN Server is pushing the routes, not the clients. I could manage the problem temporarily with manually adding a route to green on the client site, but that’s not really a solid solition.

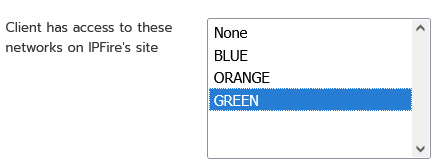

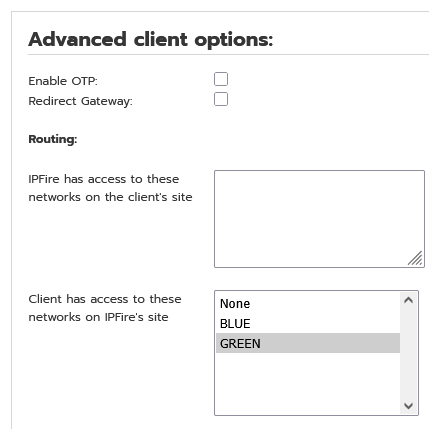

It is probably about “Advanced client options”

obraz

Regards

Thanks for reply. I know this setting and can see blue and green there, but i can’t find an option to remove the blue. And it does not explain the different client and push route behavior. I guess the default route to green as a server only setting should work for all clients.

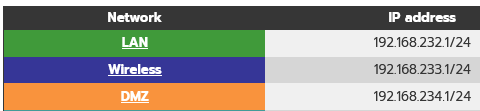

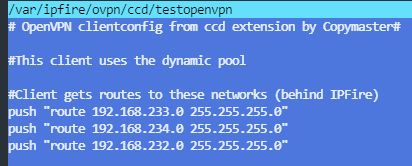

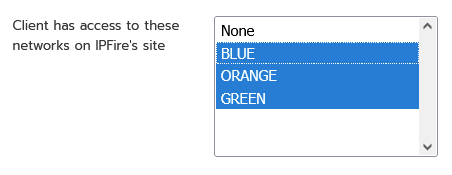

I created a virtual machine for the show

obraz

===

I hope the above images will be helpful.

Regards

Ok, I got it and should be more careful when creating new client certificates and configs. Obviously I made a wrong click at blue and wasn’t aware.

Thank you so much @iptom for your efforts and the self explaining show! :folded_hands:
