I am currently revising my network as I have recently set up IPFire.

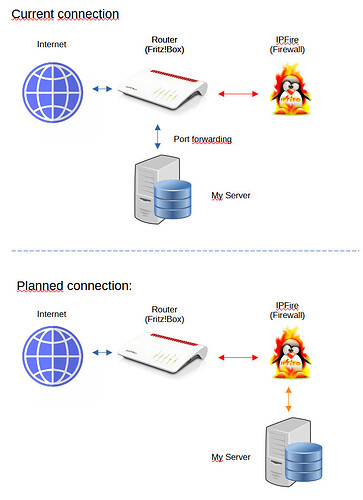

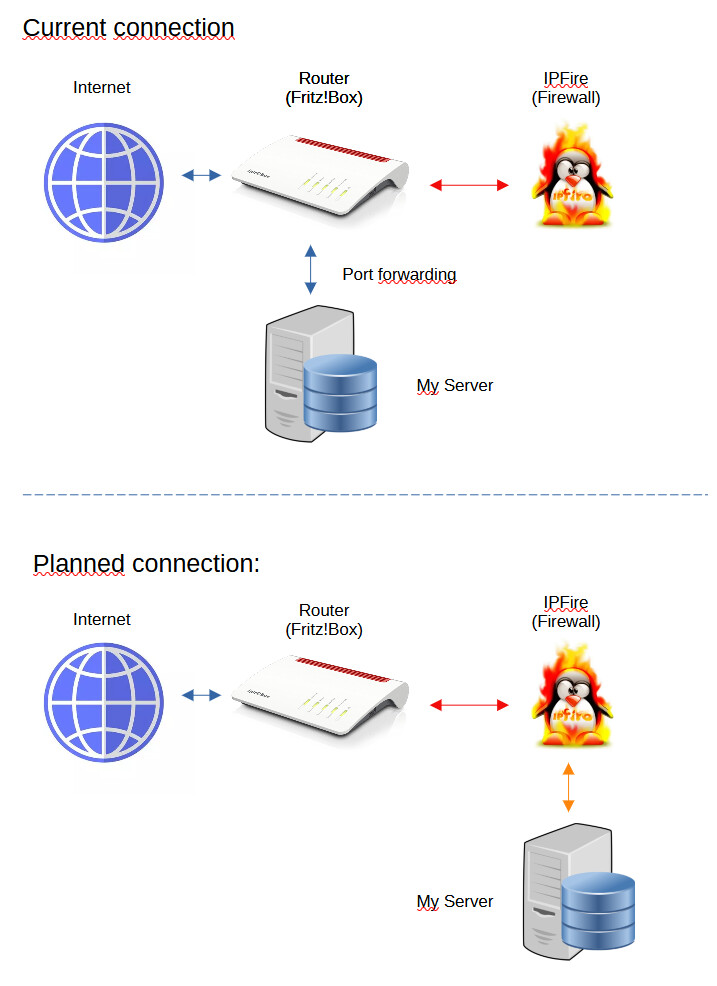

So far I have ported all trusted devices connected to the LAN to the green network. In addition, I have also integrated all WLAN devices into the blue network. Now my server is still missing, which should be in the orange network.
At the moment I don’t know how to set up port forwarding for this!
The port forwarding is currently set up in the router (Fritz!Box).
How should I proceed?
Are there any manuals?
The IPFire documentation is a good place to start looking.
https://www.ipfire.org/docs/configuration/firewall/rules/port-forwarding
There is also an example given for port forwarding to a server on the green network.
https://www.ipfire.org/docs/configuration/firewall/rules/port-forwarding/red_to_server_on_green
Just replace the green server IP with the orange server IP.
There is also a page about the DMZ which also covers about setting up a port forward rule to a server on the orange network.
https://www.ipfire.org/docs/configuration/firewall/rules/dmz-setup
Hi,
I was looking exactly for this solution / explanation!
