Entropy fail with NanoPI R2S?

roberto · 4 December 2021 08:31

Hi.

I have installed the core161 on a NanoPI R2S and it seems to work OK, but I seem to have a problem.

The operation is erratic and from SSH it tells me this:

[root@bs ~]# rngd -l
Entropy sources that are available but disabled
1: TPM RNG Device (tpm)
4: NIST Network Entropy Beacon (nist)
Available and enabled entropy sources:
Available entropy sources that failed initalization:
0: Hardware RNG Device (hwrng)
[root@bs ~]#

[root@bs ~]# /etc/init.d/rngd status
/usr/sbin/rngd is not running but /var/run/rngd.pid exists.
[root@bs ~]#

If I delete the pid:

[root@bs ~]# /etc/init.d/rngd status
/usr/sbin/rngd is not running.
[root@bs ~]#

If I start it:

[root@bs ~]# /etc/init.d/rngd start
Starting Random Number Generator Daemon...                             [  OK  ]
[root@bs ~]#

But:

[root@bs ~]# /etc/init.d/rngd status
/usr/sbin/rngd is not running but /var/run/rngd.pid exists.
[root@bs ~]#

Something is wrong. What can be?

Thanks.

Regards.

pmueller · 4 December 2021 13:17

Hi,

this looks like rngd crashes right after it started, leaving the (orphaned) PID file in place.

Do you observe anything in /var/log/messages at the time you try to start rngd?

Thanks, and best regards,
Peter Müller

jon · 4 December 2021 17:33

I am see the same error with status:

[root@ipfireR2S ~]# /etc/init.d/rngd status
/usr/sbin/rngd is not running but /var/run/rngd.pid exists.

With /etc/init.d/rngd stopped and pid removed I ran:

[root@ipfireR2S ~]# /etc/init.d/rngd start
Starting Random Number Generator Daemon...                                                                                                                                        [  OK  ]

[root@ipfireR2S ~]# /etc/init.d/rngd status
/usr/sbin/rngd is not running but /var/run/rngd.pid exists.

but there are no errors in /var/log/messages!

If I added a -d (Enable debug output):

[root@ipfireR2S ~]# /usr/sbin/rngd -d -r /dev/hwrng

Then there are errors in /var/log/messages:

Dec  4 11:29:03 ipfireR2S rngd: Initializing available sources
Dec  4 11:29:03 ipfireR2S rngd: [hwrng ]: read error
Dec  4 11:29:03 ipfireR2S rngd: [hwrng ]: No available rng device
Dec  4 11:29:03 ipfireR2S rngd: [hwrng ]: Initialization Failed
Dec  4 11:29:03 ipfireR2S rngd: can't open any entropy source
Dec  4 11:29:03 ipfireR2S rngd: Maybe RNG device modules are not loaded

jon · 4 December 2021 18:30

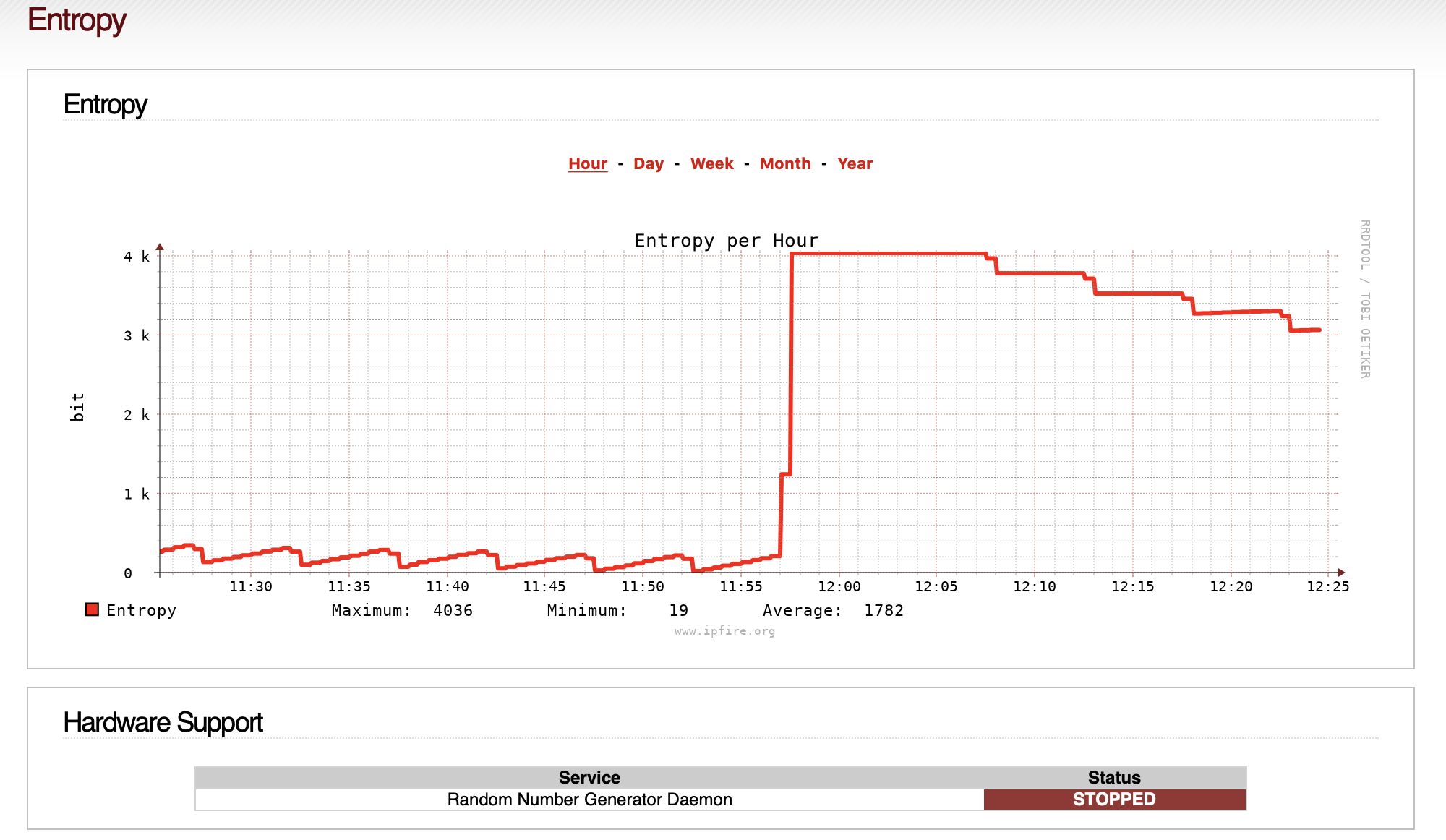

I added in an the 4: NIST Network Entropy Beacon (nist) and it seemed to like that:

But it doesn’t like the /dev/hwrng for a rng-device…

Dec  4 12:04:06 ipfireR2S rngd: Initializing available sources
Dec  4 12:04:06 ipfireR2S rngd: [hwrng ]: read error
Dec  4 12:04:06 ipfireR2S rngd: [hwrng ]: No available rng device
Dec  4 12:04:06 ipfireR2S rngd: [hwrng ]: Initialization Failed
Dec  4 12:04:06 ipfireR2S rngd: [nist  ]: Getting new record
Dec  4 12:04:21 ipfireR2S rngd: [nist  ]: Initialization Failed
Dec  4 12:04:21 ipfireR2S rngd: can't open any entropy source
Dec  4 12:04:21 ipfireR2S rngd: Maybe RNG device modules are not loaded

arne_f · 6 December 2021 08:05

The hwrng of the R2S seems to be buggy. It fails the FIPS randomness test and should not used.

jon · 7 December 2021 01:32

What should be used? hwrng and hwrngtty both fail.

jon · 9 December 2021 23:16

Hello Roberto - it may help to open a bugzilla bug report for the Entropy issue.

Jon

roberto · 10 December 2021 06:54

Hi @jon.

I didn’t know if it was cause to open a “Bugzilla”.

It is already open: 12744 – Entropy fail with NanoPI R2S

Greetings.

roberto · 14 December 2021 14:32

Hello everyone.

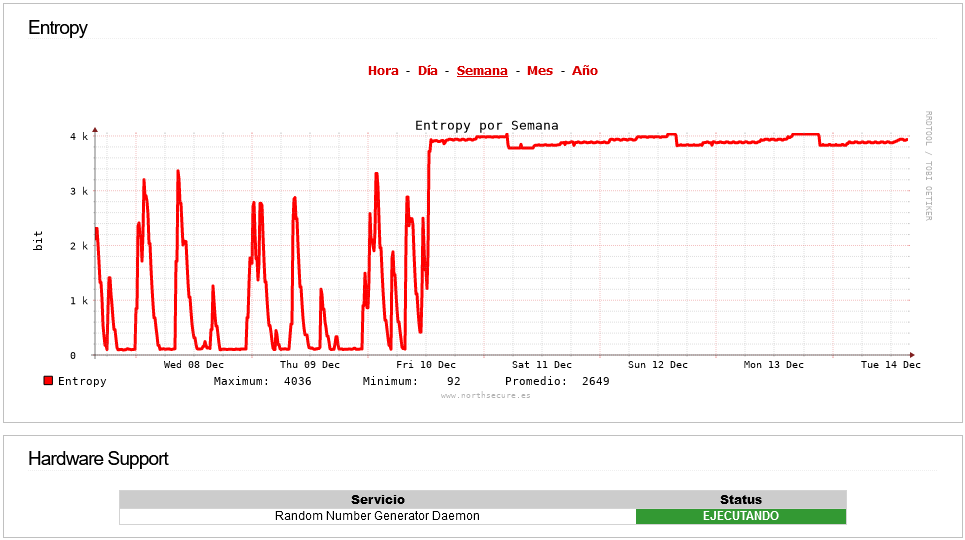

It has been like this for several days:

Without doing anything, with the same problems, it appears like this. Seem right.

A bit weird though. It’s not like that?.

Regards.

jon · 14 December 2021 23:15

it took a few days for the vacuum tubes to warm up…

roberto · 15 December 2021 06:38

Perhaps it was a false alarm with its corresponding false belief of correct operation

Yesterday I had to restart the IPFire and it has worked herratically again. I will try to reproduce the steps to see if it works correctly again (in case it worked correctly).

Regards.

jon · 18 December 2021 01:10

I just installed CU 162 (testing) on the NanoPi R2S and it seems to have the same Entropy issue.

IPFire 2.27 (aarch64) - Core Update 162 Development Build: master/65d5ec52

System versions

IPFire version	`IPFire 2.27 (aarch64) - core162 Development Build: master/65d5ec52`
Pakfire version	`2.27.1-aarch64`
Kernel version	`Linux ipfireR2S.localdomain 5.15.6-ipfire #1 SMP Sun Dec 12 17:34:13 GMT 2021 aarch64 GNU/Linux`

pmueller · 18 December 2021 13:58

Hi all,

to prevent some confusions: On systems without any or without a useable HWRNG, network activity increases the entropy, as the kernel is able to get some random numbers from timers, offsets, etc.

Perhaps there was high network activity during the timespans you observed more entropy…

Thanks, and best regards,
Peter Müller
