QOS Graphs not working in 175

Networking Quality of Service
22

See:

1 Like
23

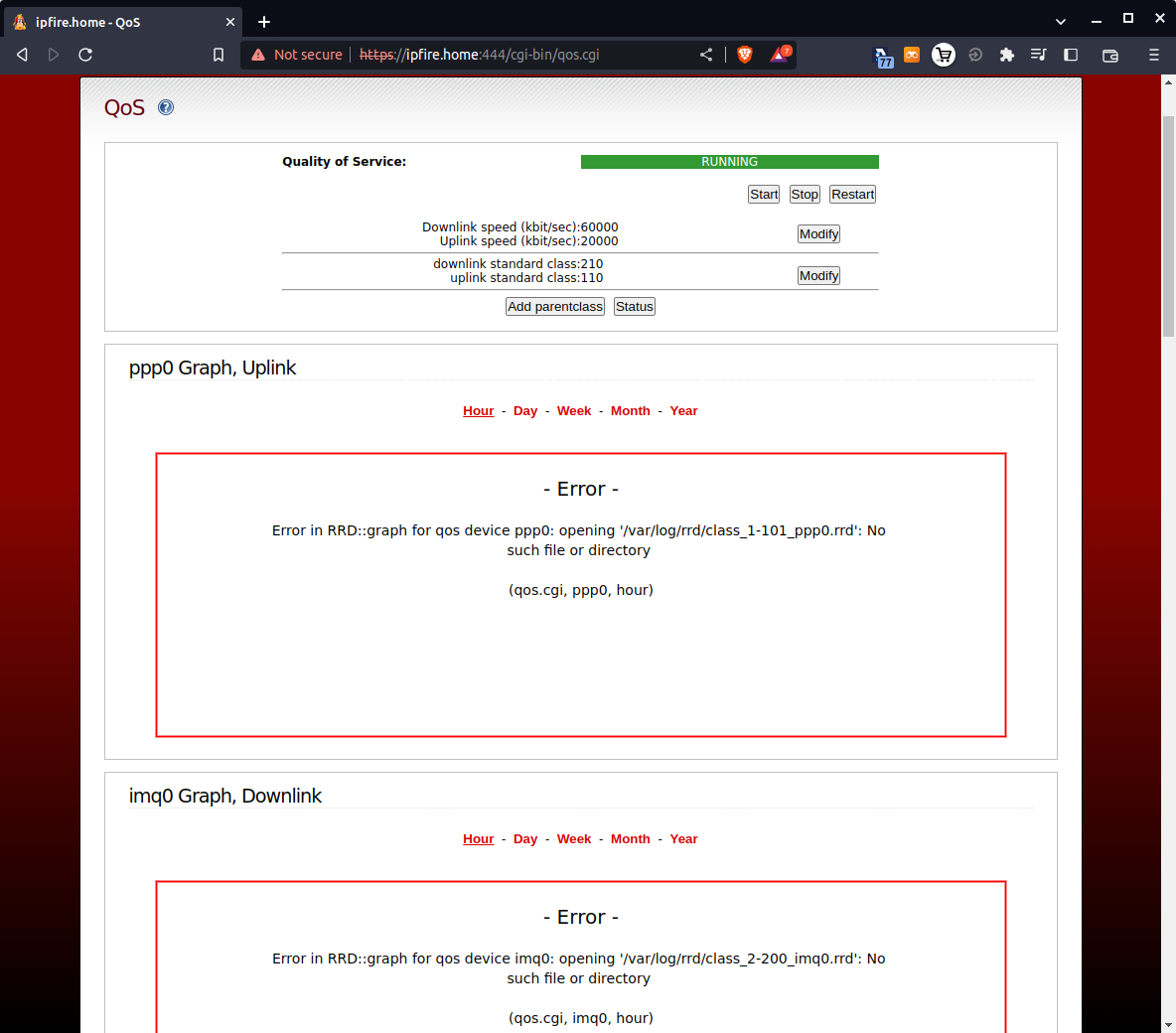

I activated QOS at my gateway a day ago. It is “IPFire 2.27 (x86_64) - Core-Update 175”. I activated preset configuration. QOS status is green, RUNNING. I cannot see RRD graphs, I see only error. Screenshot:

1184×1040 79.4 KB

[root@ipfire ~]# ll /var/log/rrd/class_*
-rw-r--r-- 1 root root 762152 Jul  8 14:24 /var/log/rrd/class_1-1_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul  8 14:24 /var/log/rrd/class_2-1_imq0.rrd

And I see other issue. When I press STATUS button, I see new page with a lot of text but there is no button to return to the main QOS view… :frowning:

When I press button add parrentclass, I see form with buttons “SAVE” and “RESET” but I miss “CANCEL” to return to the main QOS view (without any modification)… :frowning:

24

the graphs should appear later, when enough data has been collected.

25

Please see this thread started 25 days ago.
https://community.ipfire.org/t/qos-graphs-not-working-in-175/9885

A bug has been raised on that issue. There is a link in that thread plus to another bug report.
Fix for those bugs has been created and merged and is in Core Update 176 Testing.
Users experiencing this problem have confirmed that the fix applied in Core Update 176 testing has fixed the problem.

Core Update Testing is currently expected to be released early in this following week. (10th Jul onwards)

5 Likes
26

I confirm that Core Update 176 fixed the issue. I had to restart QoS to see the graphs…

After upgrade to 176 and restart of QoS:

[root@ipfire ~]# ll /var/log/rrd/class_*
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_1-101_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_1-102_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_1-103_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_1-104_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_1-110_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_1-120_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_1-1_ppp0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_2-1_imq0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_2-200_imq0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_2-203_imq0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_2-204_imq0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_2-210_imq0.rrd
-rw-r--r-- 1 root root 762152 Jul 12 13:32 /var/log/rrd/class_2-220_imq0.rrd
4 Likes
